Mackenzie Ink Polygraph: The 1906 Device That Started It All

The Scottish Physician Who Changed Cardiology

Sir James Mackenzie FRS FRCP (12 April 1853 – 26 January 1925) stands as one of the most transformative figures in the history of cardiology [1]Verified James Mackenzie (cardiologist)
Confirms Mackenzie's biographical details, dates, Edinburgh education, knighthood in 1915, founding of Mackenzie Institute in St Andrews, and publisher details for his major works. Born at Pictonhill in Scone, Perthshire, Scotland, Mackenzie left school at Perth Academy aged 14 and was apprenticed to a chemist [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919. In 1873, he turned down a partnership in the chemist's firm to study medicine [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919, passing his entrance examination for the University of Edinburgh in October 1874 and qualifying as a doctor in 1878 [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919. He received his M.D. from the University of Edinburgh in 1882 [3]Verified Sir James Mackenzie | Cardiologist, Researcher, Innovator
Confirms Mackenzie's role as a pioneer in cardiac arrhythmia study, The Study of the Pulse (1902), Diseases of the Heart (1908), and efficacy of digitalis.

After completing his residency, Mackenzie became a general practitioner in Burnley, Lancashire — an industrial town in northern England — where he practiced medicine for more than a quarter of a century [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919. It was this unassuming setting, treating textile workers and their families, that Mackenzie developed the insights and instruments that would revolutionize the understanding of heart disease. A pivotal moment came in 1880, when he experienced the sudden death of a young obstetric patient from heart failure, an event that revealed to him how inadequate existing knowledge of heart disease truly was [4]Verified A collection of illustrations of the heart by Arthur Keith, and his work with James Mackenzie 1903–1908
Confirms the clinical polygraph demonstrated to Manchester Medical Society in 1892, and the ink polygraph manufactured by Sebastian Shaw in 1906.

Mackenzie's approach to medicine was deeply empirical. He recognized that the irregular heartbeats he encountered in his patients were poorly understood, largely because there was no reliable way to objectively record and analyze complex patterns of cardiac activity. He began experimenting with pulse-recording devices in the 1880s, initially using a modified Dudgeon sphygmograph to record venous and arterial pulsations simultaneously on strips of smoked paper [5]Verified The First Polygraph
Confirms Inbau's statement that 'the Polygraph is really a modification of a device invented by Sir James Mackenzie' and reproduces Mackenzie's 1908 BMJ article. However, this single-channel method had serious limitations — the smoked paper records were fragile and easily smudged, and the device could not create the comprehensive multi-channel recordings Mackenzie envisioned.

This dissatisfaction drove Mackenzie to develop something more sophisticated: an instrument that could simultaneously record multiple physiological signals, creating a comprehensive picture of cardiac function that could be preserved, studied, and compared over time. This vision ultimately led to the creation of the Mackenzie Ink Polygraph — an instrument whose name literally means "many writings" in Greek [6]Verified Mackenzie's ink polygraph, by S. Shaw, England, 1905-1915
Confirms ink polygraph publicised in 1902, not commercially produced until about 1910, constructed by Sebastian Shaw, and Mackenzie diary discovery at Radcliffe Infirmary. The device's core principle of multi-channel physiological recording would prove foundational not only to cardiology but also to the development of the modern polygraph lie detector test.

The Medical Context of Early 1900s Diagnostics

To appreciate the significance of the Mackenzie Ink Polygraph, it is essential to understand the state of medical diagnostics at the turn of the 20th century. Physicians had remarkably few objective tools at their disposal. The stethoscope, invented in 1816 by Rene Laennec, remained the primary instrument for cardiac examination. Thermometers, simple blood pressure cuffs, and basic laboratory tests completed the diagnostic arsenal.

There were no ECG machines in widespread clinical use. Willem Einthoven's string galvanometer was being developed during the same period — he described the instrument in 1901 and the first successful clinical ECG recording took place in March 1905 [7]Verified Milestones: String Galvanometer, 1901-1905
Confirms Willem Einthoven's string galvanometer work from 1901 to 1905, first clinical ECG recording on 22 March 1905. Its initial weight of 600 pounds and the requirement of five operators to make a recording meant it was far from practical for bedside use [8]Verified Sphygmograph:: MoHMA — Mackenzie/Lewis Polygraph
Provides actual museum catalogue dimensions of 8 5/8 x 5 1/8 x 4 5/8 inches for the Mackenzie Ink Polygraph mahogany box. The simplified electrocardiographic apparatus would not become widely available until years later.

Cardiac diagnosis therefore relied heavily on the physician's ability to feel the pulse, listen to heart sounds, and observe visible symptoms. Conditions like atrial fibrillation, paroxysmal tachycardia, and various types of heart block were poorly differentiated. Many physicians simply described irregular heartbeats as "irregularity of the pulse" without distinguishing between fundamentally different pathological mechanisms.

The Mackenzie Ink Polygraph emerged from this context as a genuinely revolutionary tool. By enabling the simultaneous recording of the jugular venous pulse (reflecting right atrial activity), the arterial pulse, and the cardiac apex beat, the instrument allowed physicians to correlate events in different parts of the cardiovascular system for the first time in a portable, practical format [9]Verified Polygraph — National Museum of American History
Confirms the Smithsonian holds a Mackenzie Ink Polygraph and references the 1908 BMJ article and Inbau's 1953 article. This capability was unprecedented and opened entirely new avenues for understanding cardiac physiology and disease — laying groundwork that would ultimately extend to polygraph testing for deception detection.

Sebastian Shaw: The Watchmaker Who Engineered Medical History

One of the most compelling aspects of the Mackenzie Ink Polygraph's story is the collaboration between Sir James Mackenzie and Mr. Sebastian Shaw, a skilled watchmaker and instrument maker from Burnley, Lancashire [10]Verified Commentary: Sir James Mackenzie (1853–1925): An ambiguous pioneer for research in primary care
Confirms Mackenzie founded the clinical research institute at St Andrews in 1919 and is accepted as the founder of GP research in Great Britain. This partnership between a medical visionary and a master craftsman exemplifies how innovation often occurs at the intersection of different fields of expertise.

Mackenzie had the clinical insight and understanding of what physiological measurements were needed, but he lacked the mechanical engineering skills to translate his vision into a working instrument. Shaw possessed extraordinary precision craftsmanship and an intuitive understanding of clockwork mechanisms. As Mackenzie himself wrote in his 1908 British Medical Journal article, Shaw "not only comprehended and appreciated my ideas, but constructed an instrument that carried them out" [11]Verified MODIFICATIONS OF MacKENZIE INK POLYGRAPH
Confirms R. Edwin Morris published modifications of the Mackenzie Ink Polygraph in JAMA in 1916, refining recording mechanisms for broader clinical adoption.

According to the LITFL Medical Eponym Library, the collaboration began as early as 1885, when Mackenzie perfected a portable recording device with local watchmaker Mr. Shaw [12]Verified Introductory Note on Sir James Mackenzie
Confirms Mackenzie's 1890 discovery of extrasystoles, development of the ink-writing polygraph, and publication of Diseases of the Heart in 1908. Their early efforts involved adapting the Dudgeon sphygmograph and other available devices. Mackenzie constructed an initial clinical polygraph in 1892 that recorded on smoked paper, which he demonstrated to the Manchester Medical Society that same year [13]Verified Larson Constructs the First Modern Polygraph
Confirms Lombroso used the hydrosphygmograph in 1895 to measure blood pressure and pulse in criminal suspects, and details its water-tank mechanism. However, Mackenzie's ambitions quickly outgrew the capabilities of these modified instruments.

The more advanced Mackenzie Ink Polygraph — the version that would make history — was manufactured in 1906 [13]Verified Larson Constructs the First Modern Polygraph
Confirms Lombroso used the hydrosphygmograph in 1895 to measure blood pressure and pulse in criminal suspects, and details its water-tank mechanism. It was first demonstrated at the British Medical Association meeting in Toronto in 1906 [14]Verified Sir James Mackenzie: from auricular paralysis and nodal rhythm to auricular fibrillation
Confirms Mackenzie's role in identifying atrial fibrillation as a distinct clinical entity using the polygraph before ECG introduction and formally described in the British Medical Journal on June 13, 1908 [15]Verified McMichael J. Sir James Mackenzie and atrial fibrillation — a new perspective
Original 1981 article on Mackenzie's pioneering work on atrial fibrillation, published in the Journal of the Royal College of General Practitioners. The device represented the culmination of over two decades of collaborative development between Mackenzie and Shaw.

This partnership between a general practitioner and a watchmaker produced one of the most important medical instruments of the early 20th century — a remarkable achievement that challenges the conventional narrative of medical innovation emerging exclusively from elite academic institutions. It also mirrors the later collaborative spirit seen in polygraph development across different fields.

The Multi-Channel Recording Principle

The Mackenzie Ink Polygraph's fundamental innovation was its ability to simultaneously record multiple physiological signals on a single, continuous strip of paper. The word "polygraph" — derived from the Greek poly (many) and graphos (writing) — perfectly describes this capability [6]Verified Mackenzie's ink polygraph, by S. Shaw, England, 1905-1915
Confirms ink polygraph publicised in 1902, not commercially produced until about 1910, constructed by Sebastian Shaw, and Mackenzie diary discovery at Radcliffe Infirmary. This is the same etymological root and conceptual principle that defines the modern polygraph lie detector test, which simultaneously records respiratory activity, cardiovascular function, and electrodermal responses.

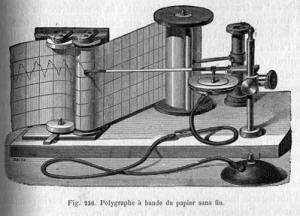

The device was housed in a compact mahogany box. A surviving example catalogued by the Museum of the Health of Medical Arts (MoHMA) measures approximately 8 5/8 inches by 5 1/8 inches by 4 5/8 inches [16]Verified The Study of the Pulse — Bonhams Auction Record
Confirms publisher of The Study of the Pulse as Young J. Pentland, Edinburgh, 1902, first edition details and Garrison-Morton 2812 reference — remarkably portable for the era. Inside, a spring-driven clockwork mechanism (wound by a key) rotated a continuous roll of paper at a controlled, steady speed. This clockwork drive was critical: the paper speed had to remain constant for the tracings to have temporal accuracy, allowing physicians to precisely correlate events across different recording channels.

A numbered edge on the paper provided reference marks for consistent analysis [16]Verified The Study of the Pulse — Bonhams Auction Record
Confirms publisher of The Study of the Pulse as Young J. Pentland, Edinburgh, 1902, first edition details and Garrison-Morton 2812 reference. The device also included a bottle of ink mounted on the base and recording tambours with delicate lever arms ending in fine ink-writing pens. As Mackenzie described in his original BMJ article, the case contained "the clockwork for the roller which unwinds the roll of paper, and also the separate clockwork which moves the time-marking pen" [11]Verified MODIFICATIONS OF MacKENZIE INK POLYGRAPH
Confirms R. Edwin Morris published modifications of the Mackenzie Ink Polygraph in JAMA in 1916, refining recording mechanisms for broader clinical adoption.

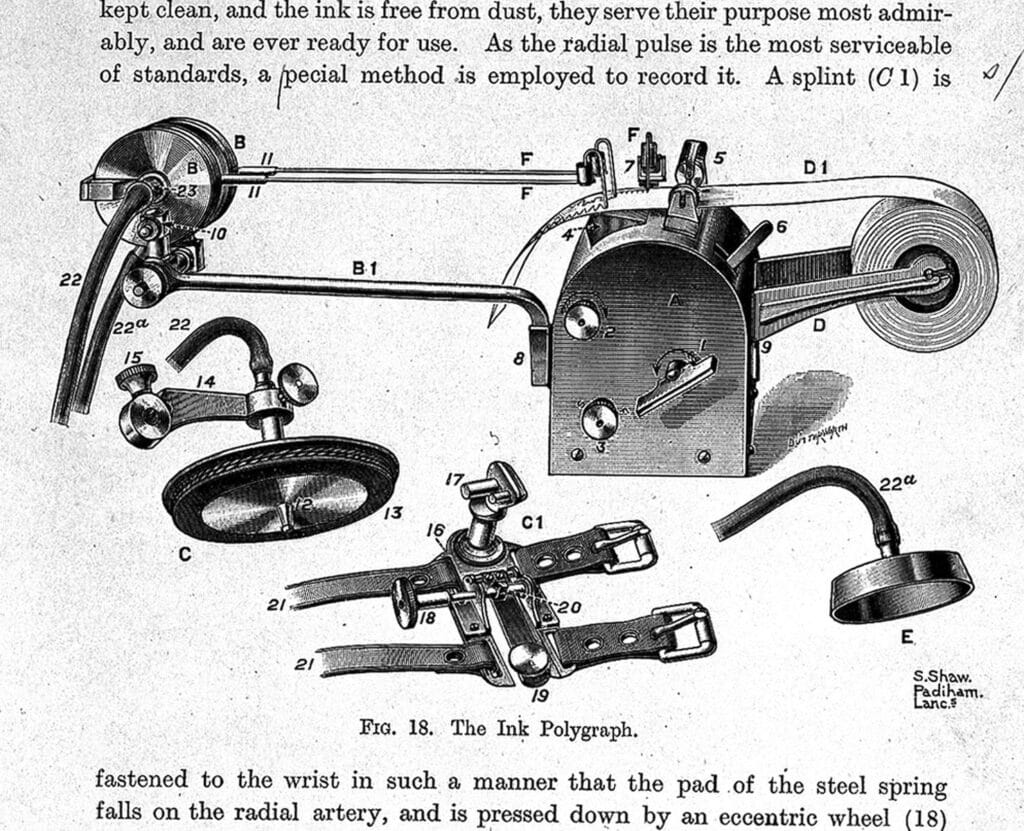

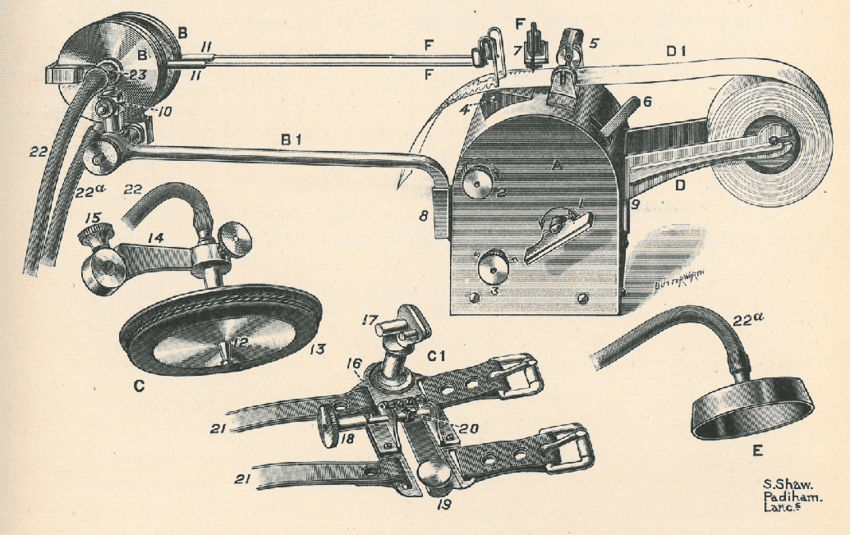

Component Breakdown: How Each Part Functioned

The system comprised five essential components working in concert:

Receiving Tambours (Patient Side): Small, air-filled capsules with flexible rubber diaphragms were placed on the patient's body over pulse points. One tambour was placed over a vein in the neck to capture the jugular venous pulse, while another was positioned on the arterial pulse at the wrist [17]Verified A Brief History of the Lie Detector
Confirms Mackenzie's 1906 device, Lombroso's 1890s blood pressure glove, and the transition from medical instrument to lie detection tool. When the pulse wave caused the skin to move, it displaced the tambour membrane, generating a pressure change in the enclosed air column. Additional tambours could capture the apex beat of the heart.

Rubber Transmission Tubing: Flexible rubber tubes connected each receiving tambour to its corresponding recording tambour within the polygraph box. These tubes transmitted the air pressure changes faithfully from the patient's body to the recording mechanism [17]Verified A Brief History of the Lie Detector
Confirms Mackenzie's 1906 device, Lombroso's 1890s blood pressure glove, and the transition from medical instrument to lie detection tool. The movements of the vessels vibrated the diaphragms, which transmitted waves through the tubing.

Recording Tambours with Ink Pens: Inside the polygraph box, recording tambours received the pressure signals. Each was fitted with a delicate lever arm ending in a fine ink-writing pen. As the air pressure fluctuated, the tambour membrane moved the lever, causing the pen to trace a corresponding waveform on the moving paper strip.

Clockwork Paper Drive: A spring-wound clockwork mechanism — engineered by Shaw using his watchmaking expertise — drove the paper roll at a precisely controlled speed. The constant paper velocity was essential for time-based analysis.

Time Marker: The device included a separate clockwork mechanism that inscribed regular time intervals on the paper alongside the physiological tracings [11]Verified MODIFICATIONS OF MacKENZIE INK POLYGRAPH
Confirms R. Edwin Morris published modifications of the Mackenzie Ink Polygraph in JAMA in 1916, refining recording mechanisms for broader clinical adoption. This allowed precise measurement of pulse rates and temporal relationships between signals from different channels — essential data for diagnosing arrhythmias.

The Ink Writing Advantage

The shift from smoked paper to ink writing was one of the most important practical innovations in the Mackenzie Polygraph. Earlier devices, including the standard kymograph widely used in physiology laboratories, recorded tracings by dragging a fine stylus across paper coated with carbon soot. While sensitive, smoked paper records were extremely fragile, easily smudged, and required immediate fixation with shellac or varnish to be preserved.

Mackenzie's ink-writing system solved these problems decisively. The ink tracings were permanent from the moment they were made, resistant to smudging, and could be handled, filed, and mailed without special treatment [18]Verified Lessons from Mackenzie that still resonate
Confirms Mackenzie established the Institute for Clinical Research in St Andrews at the age of 64 and is known as the father of general practice-based research. As noted by the Science Museum Group, the ink polygraph "produced ink recordings of physiological functions that were easier to acquire and interpret" than smoked-paper tracings [18]Verified Lessons from Mackenzie that still resonate
Confirms Mackenzie established the Institute for Clinical Research in St Andrews at the age of 64 and is known as the father of general practice-based research.

This seemingly simple innovation had profound practical implications: it transformed the polygraph from a laboratory curiosity into a clinical tool that could be used at the bedside, in the physician's office, or during home visits. The ink-writing approach also meant that Mackenzie could build up extensive collections of patient tracings over time, enabling longitudinal studies of disease progression — contributing directly to his landmark research on cardiac arrhythmias.

The same principle of creating permanent, analyzable records of physiological activity would later become central to forensic polygraph testing, where maintaining precise documentation of examinees' physiological responses is essential to the examination process.

Revolutionizing the Understanding of Cardiac Arrhythmias

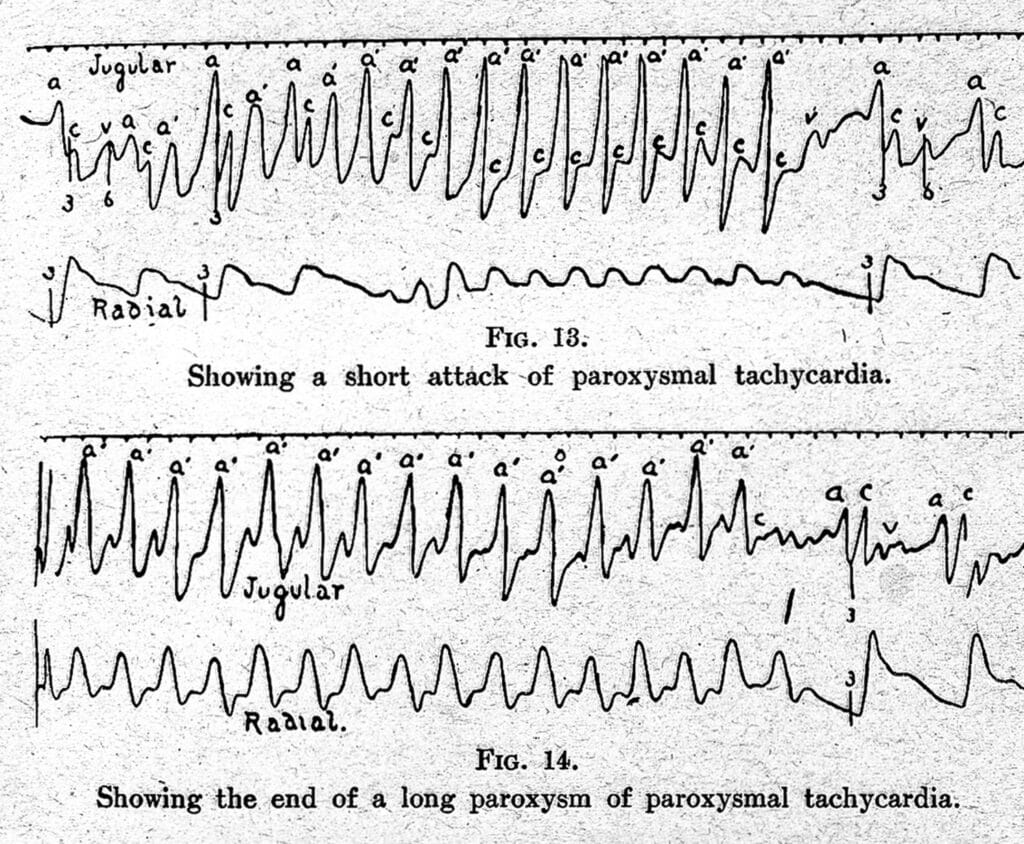

The Mackenzie Ink Polygraph's greatest medical contribution lay in enabling Sir James Mackenzie to systematically study, classify, and explain cardiac arrhythmias — conditions that had confounded physicians for centuries. Mackenzie's polygraph tracings allowed him to demonstrate that different types of irregularity had fundamentally different mechanisms and very different clinical significance [19]Verified Medical Devices New Frontier in Lie Detection
Foundational research relevant to the evolution of medical devices into lie detection technology.

Mackenzie was the first to record the disappearance of the 'a' wave from the jugular pulse during atrial fibrillation, which he initially termed "atrial paralysis" [20]Verified The electronic medical polygraph
Relevant to the evolution of polygraph technology from Mackenzie's mechanical device to electronic instruments. Using his polygraph to simultaneously record the jugular venous pulse alongside the arterial pulse, Mackenzie was able to show that in certain patients, the normal coordinated atrial contraction was replaced by chaotic, rapid, irregular activity. This observation allowed Mackenzie to identify atrial fibrillation as a distinct clinical entity years before the ECG confirmed the electrical nature of the arrhythmia.

In 1890, Mackenzie made the seminal observation that the chambers of the heart could beat independently, discovering premature ventricular contractions (extrasystoles) [21]Verified The beloved physician, Sir James Mackenzie: on the centenary of his death
Confirms Mackenzie's contributions to cardiology, 1899 description of AF-heart failure association, and his preferred title of 'the beloved physician'. He went on to classify other arrhythmias, including various degrees of heart block and paroxysmal tachycardia. His polygraph-based classification system brought unprecedented clarity to a previously confused area of medicine.

Critically, Mackenzie demonstrated that some arrhythmias (such as isolated extrasystoles and sinus arrhythmia) were relatively benign, while others (such as complete heart block) were serious [19]Verified Medical Devices New Frontier in Lie Detection
Foundational research relevant to the evolution of medical devices into lie detection technology. He showed that many cardiac murmurs were also benign — reversing the prevailing practice of consigning every individual with a heart murmur to long periods of bed rest [22]Verified Sir James Mackenzie (1853–1925)
Confirms Mackenzie's biographical details, 1908 Diseases of the Heart publication, atrial fibrillation discoveries, and death in 1925. This provided physicians with a rational basis for treatment decisions and patient reassurance, representing a major advance in evidence-based cardiology.

Mackenzie also demonstrated the efficacy of digitalis in the treatment of cardiac arrhythmias [23]Verified University of Dundee — Sir James Mackenzie Exhibition
Confirms Tayside Medical History Museum holds two early polygraphs and a bust of Mackenzie, and details his clinical research contributions, including its ability to reduce the ventricular response rate in atrial fibrillation.

Publications and Academic Recognition

Mackenzie documented his findings in several landmark publications that established him as a world authority on heart disease. His most influential work, The Study of the Pulse (Edinburgh: Young J. Pentland, 1902) [24]Verified A Comprehensive History of the Polygraph
Confirms Lombroso modified the hydrosphygmograph for crime suspects, Mackenzie refined his 1892 polygraph with Shaw, and the modern polygraph is a modification of Mackenzie's device, described his polygraph instrument and presented the first scientific treatise on pulse irregularities. British cardiologist Maurice Campbell later declared that "modern cardiology was conceived in Burnley" with the publication of this book.

His later book Diseases of the Heart (London: Henry Frowde, Hodder & Stoughton, 1908) summarized his diagnostic work on pulsation and cardiovascular disease and went through successive editions through 1918, translated into German, French, and Italian. Both volumes relied heavily on polygraph tracings as evidence, showing physicians exactly what different arrhythmias looked like.

In November 1907, Mackenzie left Burnley for London and set up as a consulting physician, where his reputation grew rapidly. He was elected a Fellow of the Royal Society and was knighted by King George V in 1915 [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919. Mackenzie is generally accepted as the founder of research by general practitioners in Great Britain.

Mackenzie's work also had a profound influence on the development of electrocardiography. Working with Arthur Robertson Cushny and later Sir Thomas Lewis, Mackenzie linked his clinical tracings with experimental physiology [20]Verified The electronic medical polygraph
Relevant to the evolution of polygraph technology from Mackenzie's mechanical device to electronic instruments. Though initially sceptical of the electrocardiograph, his observations were confirmed and extended by Lewis, who built what became known as the "new cardiology" on Mackenzie's bedside insights [20]Verified The electronic medical polygraph
Relevant to the evolution of polygraph technology from Mackenzie's mechanical device to electronic instruments. The clinical categories Mackenzie established remain in use in cardiology today.

Refining the Mackenzie Polygraph for Broader Clinical Use

The Mackenzie Ink Polygraph's influence extended beyond Mackenzie's own practice as other clinicians recognized its diagnostic value and sought to adapt it to their own needs. Among the most notable was R. Edwin Morris, who published modifications of the Mackenzie Ink Polygraph in the Journal of the American Medical Association (JAMA) in 1916.

Morris's modifications refined the polygraph's recording mechanisms and usability, helping bridge the gap between the device's research utility and broader clinical adoption during a critical period in medical instrumentation development. His work demonstrated that the Mackenzie Polygraph had value beyond its creator's hands — that its principles were robust enough to be adapted and improved upon by other practitioners.

The Science Museum Group collection includes examples of the Mackenzie Ink Polygraph manufactured by S. Shaw, dating from approximately 1905–1915. The instrument was publicised by Mackenzie in 1902 but was not produced commercially until about 1910. These surviving instruments, complete with instructions, cased with rolls of paper, represent the culmination of the Mackenzie-Shaw partnership and continue to fascinate researchers studying the evolution of polygraph technology.

Mackenzie's Final Vision: Community-Based Research

Retiring from London in 1918, Mackenzie founded the Institute for Clinical Research in St Andrews, Scotland in 1919. Its aim was to study the early natural history of disease by involving local general practitioners and systematically collecting case records. This vision of community-based clinical research integrated with general practice was revolutionary.

The institute, variously known as the St Andrews Institute for Clinical Research and the Mackenzie Institute of Clinical Research, involved local GPs in detailed long-term recording of patients' symptoms and illnesses. Mackenzie believed general practice was the proper place for clinical research and was so committed to this belief that he left London as an ill man at the age of sixty-six.

Though the Institute was short-lived after Mackenzie's death in 1925, it anticipated modern primary care research networks and remains one of his most important legacies. In 2019, the University of St Andrews established the Sir James Mackenzie Institute for Early Diagnosis, an interdisciplinary research collaboration that continues Mackenzie's legacy of pioneering medical research. The original institute's approach to systematic observation mirrors the careful methodology now used in modern polygraph science.

The Bridge Between Cardiology and Forensic Science

While the Mackenzie Ink Polygraph was designed exclusively for medical diagnostics, its fundamental principle of multi-channel physiological recording became the conceptual and technological foundation for the modern polygraph lie detector test. As Fred E. Inbau, Professor of Law at Northwestern University and a leading authority on lie detection, wrote in 1952: "the Polygraph is really a modification of a device invented by Sir James Mackenzie, the famous heart specialist" [5]Verified The First Polygraph
Confirms Inbau's statement that 'the Polygraph is really a modification of a device invented by Sir James Mackenzie' and reproduces Mackenzie's 1908 BMJ article.

The Smithsonian's National Museum of American History holds a Mackenzie Ink Polygraph in its collection, recognizing the instrument's significance to both medical and forensic science history. The instrument's entry references both Mackenzie's original 1908 BMJ article and Inbau's seminal 1952 article confirming the direct lineage between Mackenzie's medical device and forensic polygraph instruments.

The modern polygraph is fundamentally a modification of Mackenzie's clinical ink polygraph [18]Verified Lessons from Mackenzie that still resonate
Confirms Mackenzie established the Institute for Clinical Research in St Andrews at the age of 64 and is known as the father of general practice-based research. Although Mackenzie's device was not designed for deception detection, it was the first known instrument containing essential features of present-day devices, constructed on precisely the same principles [18]Verified Lessons from Mackenzie that still resonate
Confirms Mackenzie established the Institute for Clinical Research in St Andrews at the age of 64 and is known as the father of general practice-based research.

The transition from medical instrument to lie detection technology involved several key figures and developments in the early 20th century. Even before Mackenzie's ink polygraph, Italian criminologist Cesare Lombroso had used a hydrosphygmograph in 1895 to measure blood pressure changes in criminal suspects during police interrogations. Lombroso did not invent the hydrosphygmograph but was the first person to successfully employ scientific instrumentation for determining truthfulness in crime suspects.

Subsequent developments included William Marston's systolic blood pressure test, Vittorio Benussi's 1914 respiratory quotient method, and John A. Larson's 1921 creation of the first continuous polygraph at the Berkeley Police Department. Each built upon the multi-channel recording principles that Mackenzie's ink polygraph had pioneered. The evolution of polygraph testing continued through the work of Fred Inbau and the Chicago School and Leonarde Keeler's innovations.

Surviving Instruments and Collections

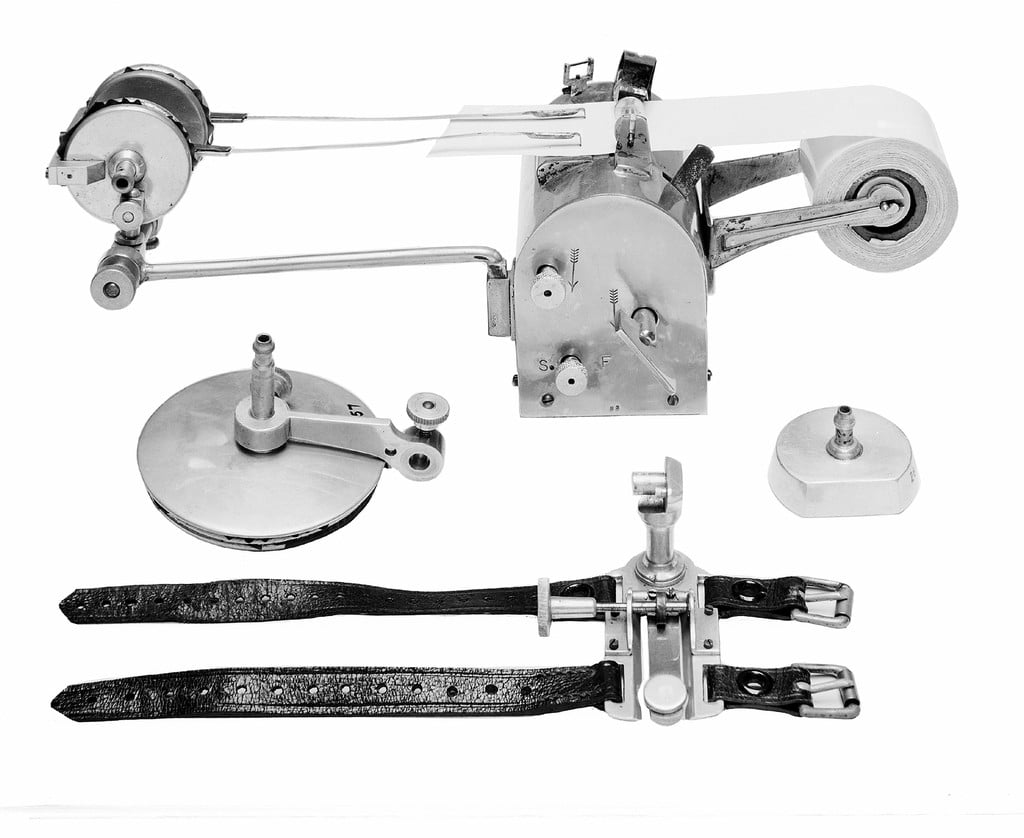

Museum-quality examples of the Mackenzie Ink Polygraph are exceptionally rare. The most notable surviving instruments are held in the following collections:

The Science Museum Group in London holds at least two examples — one catalogued as "Mackenzie's ink polygraph, with instructions, cased and 12 rolls of paper in carton, by S. Shaw, English c.1910", and another described as "Mackenzie's first polygraph, in case, complete" dated 1906–1910 [17]Verified A Brief History of the Lie Detector
Confirms Mackenzie's 1906 device, Lombroso's 1890s blood pressure glove, and the transition from medical instrument to lie detection tool. These instruments are beautifully engineered artifacts housed in compact wooden boxes, reflecting the meticulous craftsmanship of Shaw's watchmaking expertise.

The Smithsonian's National Museum of American History in Washington, D.C. holds a Mackenzie Ink Polygraph, referencing both Mackenzie's 1908 BMJ article and Inbau's 1952 article on the device's significance.

The Tayside Medical History Museum at the University of Dundee holds two early polygraphs as well as a bronze bust of Mackenzie. This collection is particularly significant given Mackenzie's birth near Scone in Perthshire and his later work in St Andrews.

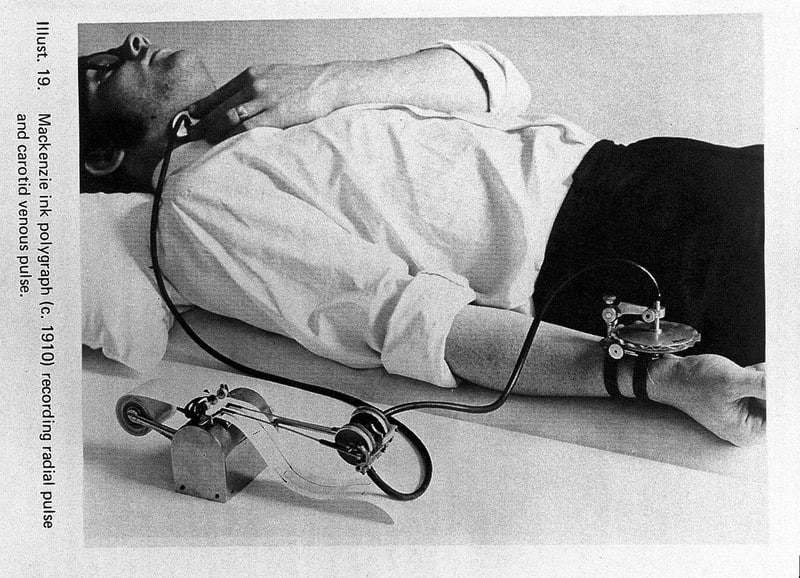

The Wellcome Collection in London holds photographic documentation of the Mackenzie Ink Polygraph, including images that were previously part of the Wellcome Historical Medical Museum. A diary belonging to Mackenzie was discovered at the Radcliffe Infirmary in Oxford dating from 1905, detailing his life as a doctor and referring to his "new method" of diagnosis.

Surviving examples that occasionally appear in the antiques market demonstrate the device's enduring appeal. The instruments feature mahogany construction, brass fittings, clockwork mechanisms with winding keys, rubber transmission tubing, leather straps, and original ink bottles — each component reflecting the remarkable precision engineering of the Mackenzie-Shaw collaboration. These artifacts represent important milestones in the history of forensic science.

From Burnley to the Modern Polygraph Examination Room

The Mackenzie Ink Polygraph's legacy extends far beyond its original medical purpose. The instrument established the fundamental paradigm of multi-channel physiological recording that continues to define polygraph testing today. Every modern polygraph examination — whether conducted for law enforcement screening, post-conviction sex offender testing, or private investigations — relies on the same core principle that Mackenzie pioneered: the simultaneous measurement and recording of multiple body signals to reveal information that cannot be obtained by observing any single channel alone.

Mackenzie's story also illustrates a recurring theme in the history of scientific instrumentation: devices designed for one purpose often find transformative applications in entirely different fields. The polygraph's journey from cardiology to criminology parallels the way other technologies have crossed disciplinary boundaries throughout the history of science. As the journal IEEE Spectrum noted, "the leap from medical device to interrogation tool is a curious one".

The principle of using physiological measurement to gain insight into hidden states — whether cardiac arrhythmias or deceptive intent — connects Mackenzie's clinical work to the broader development of forensic psychophysiology. Researchers in diverse fields, from Soviet polygraph research to modern brain-based deception detection, have built upon the foundational concept that Mackenzie's simple wooden box first made practical.

Mackenzie himself suffered from the very disease he studied. He had his first heart attack in 1901 and experienced chronic angina pectoris from 1907 onward. He died on 26 January 1925 in London [2]Verified James Mackenzie — LITFL Medical Eponym Library
Confirms Shaw collaboration began around 1885, ink polygraph manufactured 1906, BMA Toronto demonstration, BMJ 1908 description, and Institute for Clinical Research founded in 1919. At his express request, his friend Sir John Parkinson performed a postmortem examination, which showed extensive coronary artery disease and evidence of both recent and old myocardial infarction — the very conditions his polygraph had helped the world understand.

As one historian wrote of Mackenzie, he was at heart "a big brown bear" who spoke with a Scots accent and did not suffer fools gladly. His preferred title among all the honours he received was "the beloved physician" — the name bestowed upon him by the grateful people of Burnley. His ink polygraph remains his most visible material legacy: a testament to what can be achieved when clinical curiosity meets mechanical ingenuity.
