In the dynamic field of lie detection, the Rubicon Polygraph System stands out as an exemplary tool for professionals. This advanced system is designed to deliver precise psychophysiological testing and comprehensive data analysis, making it indispensable for law enforcement, corporate investigations, security services, and therapeutic environments. This article delves into the key features, functionalities, and applications of the Rubicon Polygraph System, offering a detailed look at its capabilities and components.
Table of Contents
Introduction to the Rubicon Polygraph
Developed in Odessa, Ukraine, and launched in 2023, the Rubicon Polygraph System combines advanced software with high-quality hardware to deliver accurate and reliable results. Its user-centric design and innovative technology make it a versatile tool for various settings.
Key Features and Functionalities
Software Installation and Compatibility
The Rubicon Polygraph software is compatible with Windows operating systems (versions 7 through 10). Installation is straightforward, requiring administrator rights on the PC. The software can be downloaded from the official website, and all necessary drivers and components are automatically loaded during installation.
User-Friendly Interface

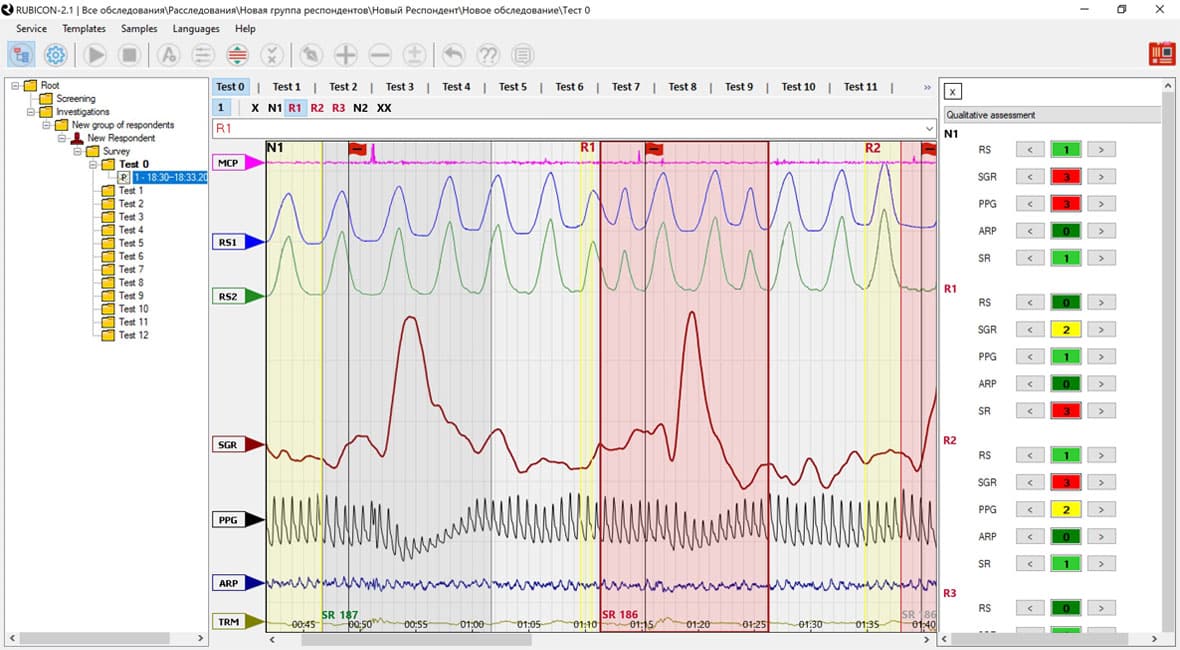

The Rubicon software interface supports multiple languages, including English, Russian, and Ukrainian. It features a comprehensive control panel with menu sections for services, templates, languages, and help options, making it accessible and easy to navigate for users of varying expertise levels.
Advanced Data Acquisition and Analysis
The Rubicon Polygraph offers three operating modes: Polygraph, Neuro, and Neuro Polygraph. This flexibility allows for tailored testing based on the specific requirements of the examination. The system records physiological reactions such as skin resistance, pulse rate, and plethysmography with high precision.
Comprehensive Testing Capabilities
The Rubicon Polygraph supports all internationally accepted logging channels of high reliability, ensuring accurate and comprehensive data acquisition. Each logging channel is represented by several models of sensors, utilizing the highest quality methods of recording physiological parameters.
Component Layout and Design
The component layout on the printed board is optimized to eliminate the mutual influence of indicators for each logging channel, ensuring the highest quality of data. The printed board’s manufacturing quality is backed by a confident 3-year warranty period.
Polygraph and Activity Sensors
The Rubicon Polygraph and its sensors are housed in non-toxic plastic casings with a shielding effect, providing noise immunity and enabling field use. The ergonomic design of the sensor casings ensures minimal discomfort for the subject, enhancing the quality of registered indicators. Sensor cables with molded connectors and double shielding ensure reliable connections and prevent data distortion. The connecting polygraph cable is equipped with a filter for interference suppression in electrical circuits.
Detailed Sensor Information
Electrodermal Activity – Galvanic Skin Response Sensors (EDA Sensors)
- SGR S-1 Model
- Features: Fixed plates (50×50 mm), silver-plated contact surface (15 microns), double-sided fastener “Velcro” (15 cm), cable with double shielding (150 cm), cable connector “Jack” (3.5 mm).
- SGR S-2 Model
- Features: Removable plates (50×50 mm), gold-plated contact surface (15 microns), double-sided fastener “Velcro” (15 cm), cable with double shielding (150 cm), cable connector “Jack” (3.5 mm).
Respiratory Activity – RA Sensors
- RS PN-1 Model
- Features: Air silicone tube (20 cm), clamps of photopolymer plastic, stainless steel fasteners, nickel-plated chain (150 cm), silicone connecting tube (150 cm).
Peripheral Cardiovascular Activity – Photoplethysmogram Sensors (PCVA Sensors)
- PPG-1 Model
- Features: Removable casing (photopolymer plastic), photodiodes fixed in the casing, double-sided fastener “Velcro” (15 cm), cable with double shielding (150 cm), “Jack” connector (3.5 mm).
Central Cardiovascular Activity – ARP PZ-1 Model
- Features: Removable casing (photopolymer plastic), contact disc of photopolymer plastic, double-sided fastener “Velcro” (15 cm), cable with double shielding (150 cm), “Jack” connector (3.5 mm).
Physical Activity Sensors
- TRM PZ-1 Model
- Features: Removable casing (polymer fabric), removable case (13×35 cm), cable with double shielding (150 cm), “Jack” connector (3.5 mm).
- TRM PZ-2 Model
- Features: Removable casing (polymer fabric), removable case (22×35 cm), cable with double shielding (150 cm), “Jack” connector (3.5 mm).
Acoustic Activity Sensor – MKP-1 Model
- Features: Plastic casing, removable case (polyurethane), shielded cable (180 cm), “Jack” connector (3.5 mm).
RUBICON Polygraph P-01 Model
The first model of the RUBICON computer polygraph, the P-01, is a symbiosis of the most successful technical solutions from various polygraph manufacturers. Its effectiveness has been verified through years of operation by leading experts in Ukraine and CIS countries. The RUBICON P-01 is designed for real-time recording and processing of respondent physiological parameters, as well as storing the results of the studies.
Package Contents
- Data Processing Unit “B-01”
- Tremor Sensor “TRM”
- Breath Sensors “RS1” and “RS2”
- Central Cardiovascular Activity Sensor “ARP”
- Electrodermal Activity Sensor “SGR”
- Peripheral Cardiovascular Activity Sensor “PPG”
- Acoustic Activity Sensor “MCP” (1 unit)
- Connection Cable “USB – USB type C” (1 pc.)
- USB Drive with Software & Instructions
- Packing Case “K-1”
- Pelican Case (extra)
- Software Rubicon-v2.1
Neuropolygraph Option
Starting in the fall of 2022, the RUBICON P-01 polygraphs are compatible with neurogadgets. The new version of Rubicon-v2 software enables the simultaneous recording of brain and physiological activity.
- Neuropolygraph Model М-1
- Neuropolygraph Model М-2
The complete set of the RUBICON P-01 polygraph with a neurogadget significantly enhances the quality of specialist work. These gadgets can be purchased separately or as part of a complete polygraph set.
Rubicon Polygraph Advantages
- Production in Ukraine
- 3-year Warranty
- English Version of Software
- Conformance to DSTU and ASTM Standards
- Full Package of Documents
- Prompt Delivery and Service
- High Reliability
- Free Consultation
Quality Assurance and Customer Base
Rubicon polygraphs and sensors are used successfully by many organizations in Ukraine and abroad. The company provides a full package of documents confirming the quality of their polygraphs, including the Certificate DSTU, Declaration of Conformity, Conclusion of SEE, Calibration Certificate, and Software Copyright.
